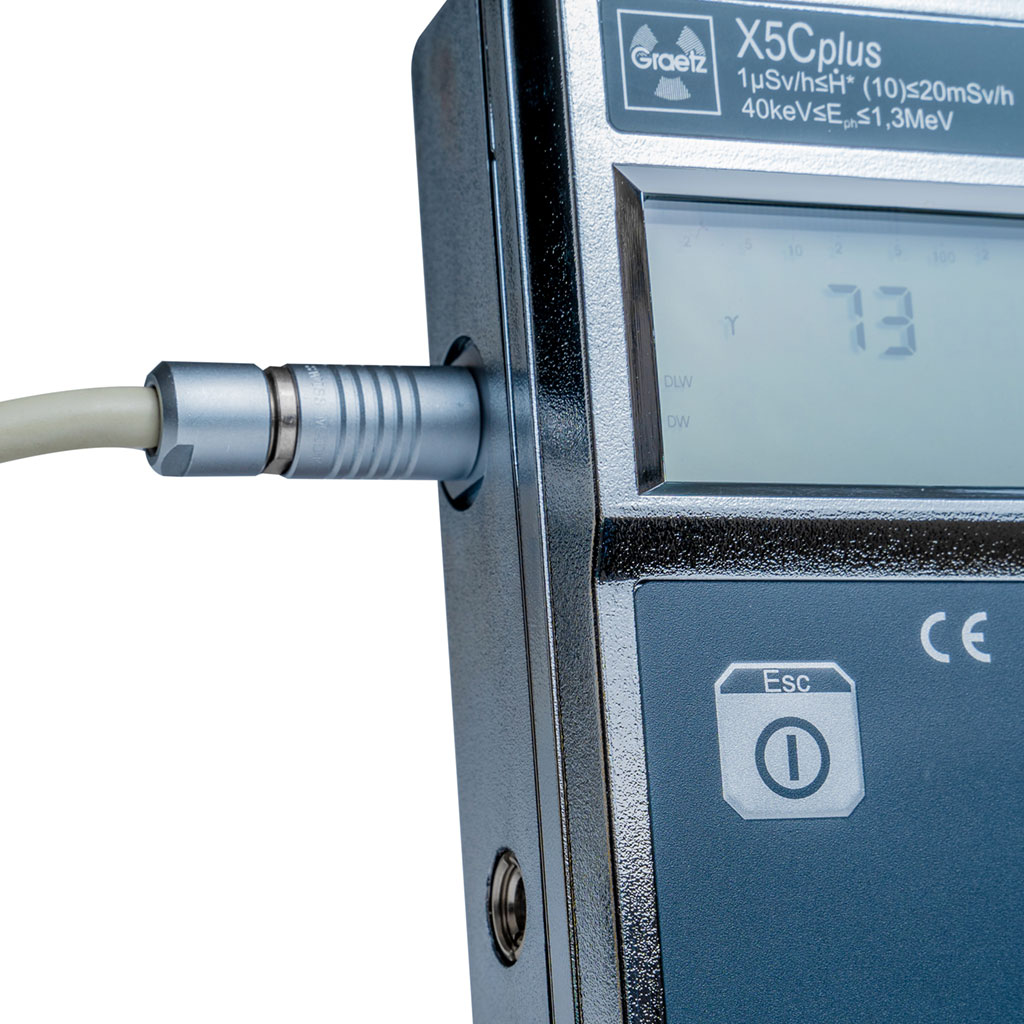

X5C plus SE w/ 18545C probe
Electronic Dose Rate Meter
The X5C plus SE measures gamma radiation and X-rays for the ambient dose rate equivalent H*(10) and corresponding ambient dose (local dose). The internal detector features an energy-compensated GM tube.
Technical specifications
General Features
- Temperature range: -30 °C up to +60 °C
- Power supply: 9 V battery (6LR61)
- Acoustic alarm: Approx. 65 dB(A) at 30 cm distance
- Dimensions: (152 x 82 x 39) mm
- Weight: Approx. 365 g
Specification
- Dose rate indication range: 0 nSv/h – 19.99 mSv/h
- Dose rate measuring range: 1 μSv/h – 19.99 mSv/h
- Dose indication range: 0.01 nSv – 10 Sv
- Dose measuring range: 0.5 μSv – 10 Sv
- Energy range: 45 keV – 1.3 MeV
- Dose rate alarm thresholds: 4, user-adjustable in the range 1 µSv − 10 Sv
- Dose alarm thresholds: 4, user-adjustable in the range 1 µSv/h – 19.99 mSv/h
General functions

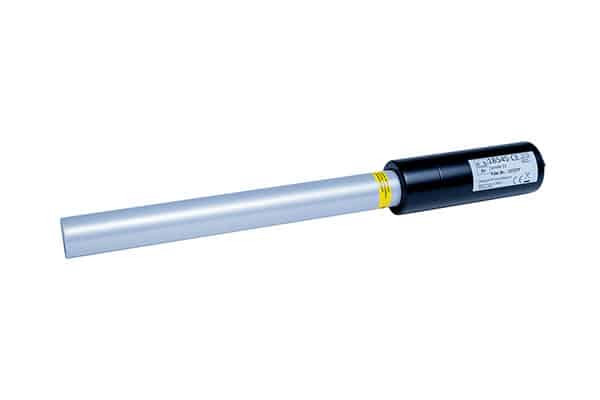

An external probe (type 18545 CE) is available in order to further increase sensitivity to low dose rates.
(Not applicable in pulsed fluoroscopy applications.)
Dose rate measuring range: 150 nSv/h – 200 μSv/h
Energy range: 40 keV – 1.3 MeV
Length: 360 mm
Diameter: 25/40 mm
Weight: 350 g
