CompFor MTS

Mammography Compression Force Test Set

The set to measure compression force of mammography systems was compiled to meet all requirements of DIN 6868-152 and 6868-7 as well as IEC 61223-3-2 and 61223-2-10.

The compression force of mammography systems is regularly to be measured in both automatic and manual mode to assure accuracy and reliability.

Appropriate compression of the breast is one of the essential parameters to achieve an ideal imaging quality in mammography.

The test set consists of a foam cube featuring pre-defined size and density, electronic scales to fit the bucky, and a tape measure.

The recommended compression force per DIN/IEC standard can be checked as well as the maximum force which is not to be exceeded.

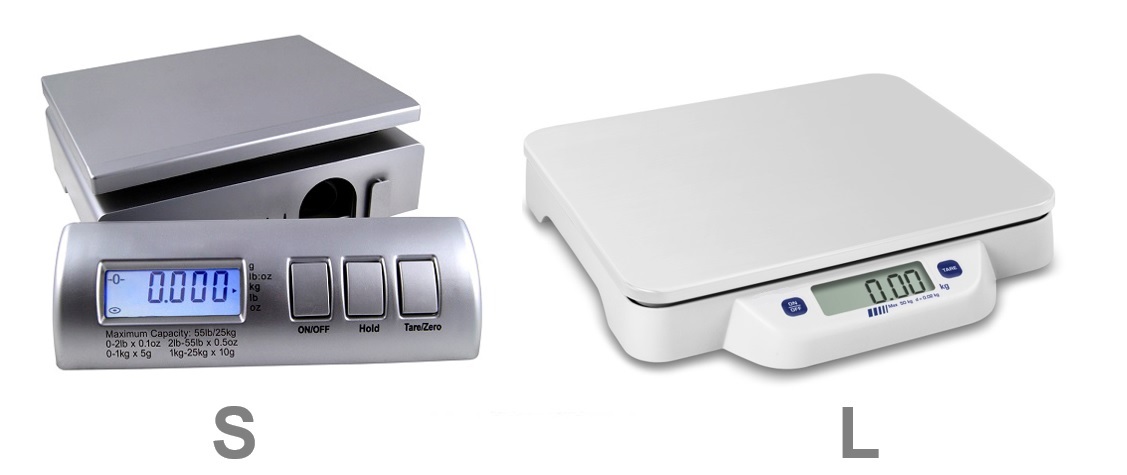

Two version are available for different bucky sizes - Large (L)  or Small (S).

Technical specifications

  • Option Scales L

  • Scales: Dimension 320 x 300 x 60 mm
  • Platform size: 320 x 260 mm
  • Range: 0 - 490 N (or 0 - 50 kg)
  • Resolution: 0.2 N (or 20 g)
  • Unit: kg

Option Scales S

  • Scales: Dimension 228 x 205 x 71 mm
  • Platform size: 203 x 160 mm
  • Range: 0 - 245 N (or 0 - 25 kg)
  • Resolution: 0.1 N (or 10 g)
  • Units: kg / lb / oz / lb:oz



Foam Bloc

  • Dimension: 80 x 80 x 40 mm
  • Density: 30 ± 5 kg/m3



Tape Measure

  • Units: mm / cm / m
  • Length: 2 m
General functions

One set of batteries, required for a flexible application, are provided upon delivery.

Both options/sets are available as "ref" versions.

They will be delivered with a calibration certificate which is valid for 2 years.
